TM-12Z型万能齿轮检测仪

测量用途(Measuring applications):

是一种新型的智能化齿轮测量仪，可以检测渐开线圆柱齿轮，内齿轮等，并可在一次装夹的条件下，完成渐开线齿轮的齿廓偏差、螺旋线偏差及齿距偏差的测量。适合于汽车、摩托车、微电机及电动工具等行业的小齿轮精度的检测。

CS-12Z universal gear tester is a new style of intelligent gear measuring instrument, it can detect involutes cylindrical gear, internal gear etc. The tester can complete the measurement of tooth profile deviation, helix deviation, pitch deviation of involute gear in just one setup. It can be applied to detect little gears of automobile, motorcycle, micro-motor, electric tool etc.

圆柱齿轮：cylindrical gear

齿廓偏差，包括：齿廓总偏差：Fa，齿廓形状偏差：ffa ，齿廓倾斜率偏差：fHa

Profile deviations includes: total profile deviation: Fa ，profile shape deviation: ffa, profile tilt rate deviation: fHa

螺旋线偏差，包括：螺旋线总偏差：Fβ，螺旋线形状偏差：ffβ，螺旋线倾斜偏差：fHβ

Helix deviations includes: total helix deviation ：Fβ，helix shape deviation：ffβ，helix tilt rate deviation: fHβ

齿距偏差，包括：齿距累积总偏差：Fp，K个齿距累积总偏差：Fpk，单个齿距偏差：fpt

Pitch deviations includes: pitch accumulation deviation：Fp，K pitches accumulation deviation：Fpk，single pitch deviation ：fpt

径向跳动，Fr       Runout deviation: Fｒ

特点( Features)：

采用电子展成的测量原理，检测精度高；

Using electronic integration measuring principle, high detection precision;

测量齿距的速度快，节省测量时间；

The measuring speed is very fast, much time can be saved;

采用花岗岩底座及顶尖立柱，精度稳定且不生锈；

Using granite base, top pillar to ensure stable precision and avoid rustiness.

采用高精度的密珠滚动轴系及密珠滚动导轨结构，不但精度高，而且寿命长；

The utilization of high precision bead rolling shaft system and bead rolling guide structure, it can not only has high precision, but also has long life.

所有的基准元件、控制执行元件均为进口，确保仪器的稳定性；

All of the reference elements, controlling elements are imported; witch ensures the stability of the instrument.

仪器采用了光栅数字测头，测力小，灵敏度高，解决了小模数齿轮的检测；

This tester applies grating digital probe, little load, high sensitivity to solve the detection of small module gear.

采用ISO1328国际标准或ＤＩＮ德国标准进行误差评定

Using ISO1328 international standard (or DIN) to evaluate errors.

提供多种不同的打印报告供用户选择，满足不同用户需求

Offer many kinds of printing reports for choices to meet different requires from customers.

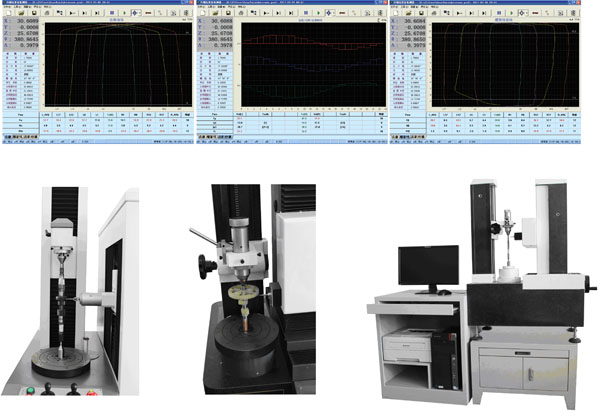

测量界面(measuring interface)：

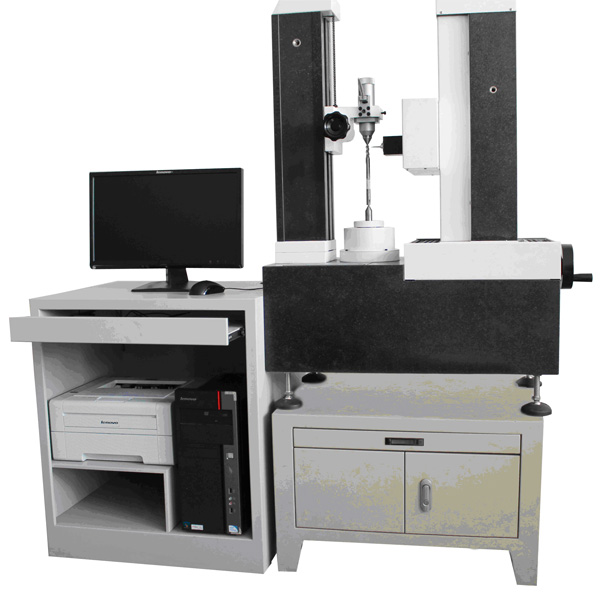

成套仪器包括(The device includes)：

仪器主机1台

One instrument host;

计算机软硬件测量系统及打印机各壹套

One computer software and hardware, one printer;

标准附件：φ0.5，φ1，φ2 ，球测头各壹件,带动器壹套。

Standard attachments: a piece of φ0.5,φ1，φ2   ball probe, a set of drive device.

可选附件：标准齿轮、样板及可涨心轴等

Optional attachments: standard gears, template, expanding mandrel etc;
