测量用途(Measuring applications):

主要适合渐开线圆柱齿轮(多联齿轮、内齿轮等)、齿轮刀具(滚刀、剃齿刀等)的齿廓偏差、螺旋线偏差、齿距偏差、齿距累积总偏差、齿圈径向跳动的测量，同时加上功能软件还可测量：蜗轮、蜗杆、弧（直）齿锥齿轮等测量功能以满足齿轮制造行业对齿轮检测的要求。

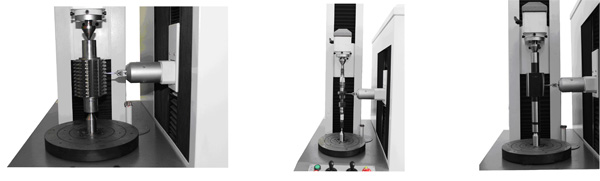

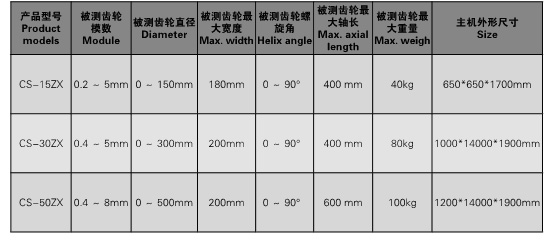

规格（Specifications）：

功能(Functions)：

圆柱齿轮：Cylindrical gear

齿廓偏差，  包括：齿廓总偏差：Fa ，齿廓形状偏差：ffa ，齿廓倾斜率偏差：fHa

Profile deviations includes: total profile deviation: Fa ， profile shape deviation: ffa,  profile tilt rate deviation: fHa

螺旋线偏差，包括：螺旋线总偏差：Fβ，螺旋线形状偏差：ffβ，螺旋线倾斜偏差：fHβ

Helix deviations includes: total helix deviation ：Fβ， helix shape deviation：ffβ，helix tilt rate deviation: fHβ

齿距偏差，  包括：齿距累积总偏差：Fp，K个齿距累积总偏差：Fpk，单个齿距偏差：fpt

Pitch deviations includes: pitch accumulation deviation：Fp， K pitches accumulation deviation：Fpk，single pitch deviation ：fpt

径向跳动偏差：Fｒ       Runout deviation: Fｒ

齿轮刀具：Gear cutting tools

齿轮滚刀：滚刀螺旋线、容屑槽及轴向齿距、齿形、前刀面径向性、容屑槽与轴线平行性、啮合线、轴台径向跳动及轴台端面跳动；

Gear hobs: hob helix , let crumbs slot and radial pitch, tooth shape, parallelism, line of action,runout and transverse runout.

插 齿 刀：齿形、齿向、齿距及径向跳动；

Shaping cutters: tooth profile, destination, pitch and runout;

剃 齿 刀：齿形、齿向、齿距及径向跳动；

Shaving cutters: tooth profile, destination, pitch and runout;

蜗    杆：齿形、齿向、齿距及端面跳动；

Worm: tooth profile, destination, pitch and transverse runout;

蜗    轮：齿形、齿向、齿距及径向跳动；

Worm gear : tooth profile,destination,pitch and runout;

锥 齿 轮：齿廓形貌、齿距及径向跳动。

Bevel gear: profile, pitch and runout

采用电子展成的测量原理，全自动检测，精度高；

The utilization of electronic integration measuring principle, fully automatic measurement, high precision;

特点( Features)：

采用高精度的密珠滚动轴系及密珠滚动导轨结构，不但精度高，而且寿命长；

Using high precision bead rolling shaft system and bead rolling guide structure; it not only has high precision, but also has long life.

所有的基准元件、控制执行元件均为进口，确保仪器的稳定性；

All of the reference elements, controlling elements are imported; witch ensures the stability of the instrument.

WINDOWS操作平台的图文交互式测量软件，学习简单，操作方便；

Graphic interactive measurement software on WINDOWS operating platform, easy learning, convenience operating.

采用ISO1328国际标准（或DIN)进行误差评定;

Using ISO1328 international standard (or DIN) to evaluate errors.

提供多种不同的打印报告供用户选择，满足不同用户需求.

Offer many kinds of printing reports for choices to meet different requires from customers.

技术参数(Technical parameters)：

成套仪器包括(The device includes)：

1．仪器主机1台

      One instrument host;

2．计算机及软硬件测量系统1套

      One computer software and hardware;

3．激光打印机1台

     One laser printer;

4．标准附件：φ0.5,φ1，φ2，φ3球测头各1件。带动器壹套。

     Standard attachments: a piece of φ0.5,φ1，φ2，φ3 ball

 probe, a set of  drive device.

5．可选附件：标准齿轮、样板及可涨芯轴等。

      Optional attachments: standard gears, template, expanding

arbor etc;
